Dom /Produkty/Diamentowa piła drutowa/Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length

Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length

1
MOQ
Negocjowalne
Cena £
Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Zużycie wody: 4m3/godz
Podkreślić:

Vertical CNC wire saw machine for stone cutting

,

PLC control diamond wire saw machine

,

Stone cutting wire saw with 4m3/H water consumption
Podstawowe informacje
Miejsce pochodzenia: FUJIAN
Nazwa handlowa: Xianda Machinery
Orzecznictwo: CE/ISO9001
Numer modelu: VCWS-900-04
Zapłata
Szczegóły pakowania: Nadaje się do transportu morskiego
Czas dostawy: 30 dni
Zasady płatności: L/C, D/A, D/P, T/T
Możliwość Supply: 1000 zestawów/rok
opis produktu

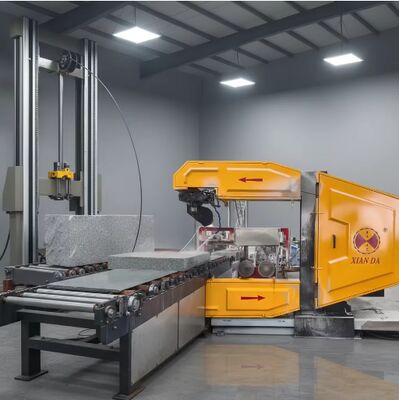

Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting

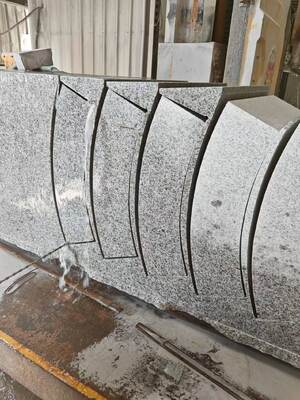

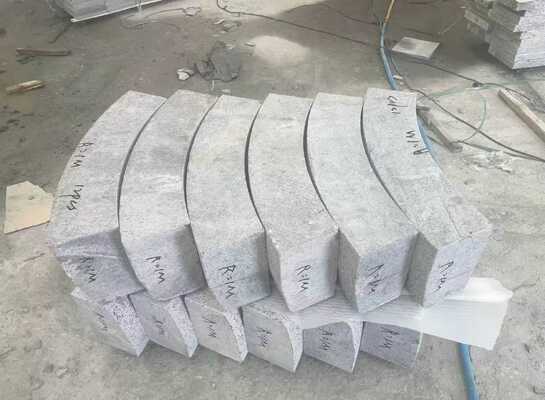

Elevate Your Stone Processing Efficiency & Precision with our advanced Vertical CNC Wire Saw Machine designed specifically for curved curbstone cutting applications.
Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length 0 Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length 1 Vertical CNC Wire Saw Machine with PLC Control for Stone Cutting, 4m3/H Water Consumption and 20-50m Wire Length 2
Advanced CNC Control System
CNC Brain Built for Stone, Not for Show
  • 15-inch industrial touch-screen running Windows-based CNC (upgradable OTA for life)
  • 3-axis interpolation (X1, X2, Y, A) enables cutting straight, curved, concave, convex or full 360° radial profiles without repositioning
  • AI speed optimizer reads stone density in real time and auto-tunes wire speed 20–40 m/s—eliminating human guesswork, reducing wire wear by 12%
  • Resume-from-breakpoint functionality: restart after power outage without material waste
Twin-Table Production System
While table-1 finishes a cut, table-2 is already loading the next block. Separate 3-ton payloads, separate servo drives, one program. Result: 28% higher daily output on the same footprint.
Precision Engineering Features
  • Closed-loop hydraulic wire tensioning with ±1 N accuracy—eliminates "hour-glass" cuts
  • A-axis rotary with sealed IP65 gearbox—no water ingress, no maintenance journals
  • Dual 45# heavy-duty linear rails with oil-bath lubrication—10-year wear warranty
  • Whole machine steel: 6-month natural aging + tempering + sand-blast + anti-rust treatment—prevents micro-cracks and seasonal re-alignment
Energy Efficient Operation
11 kW permanent-magnet main motor paired with a 15 kW VEICHI vector inverter draws only 17.5 kW total—less than a household heat-pump. Save USD 1,200/year in electricity compared to older 22 kW models.
Export-Ready Packaging
One 20-foot container accommodates the fully assembled unit—no disassembly, no re-calibration on arrival. Ship Friday, install Monday.
Technical Specifications
Max work-piece 2,300 × 900 × 400 mm
Wire diameter 6.3 – 9.2 mm (closed-loop)
Wire length 7.4 m
Wire wheel Φ1,000 mm, dynamically balanced to G2.5
Footprint 4,350 × 4,750 × 2,350 mm
Water consumption 4 m³/h (recyclable)
Warranty 12 months, global parts network
Pricing & Terms
Valid 90 days from 11 Dec 2025
  • Ex-works, China—no tax, no freight
  • 30% deposit, 70% before loading
  • Price locked unless specs change—written guarantee supplied
Production slots for Q1 are 70% booked
Contact Information

Email: group@chinaxianda.com

Phone: +86 130 5567 3306

Cut smarter, ship faster, brand bolder—with the VCWS-900-04
