Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting

1
MOQ
To Be Negotiable
Cena £
Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Długość drutu: 10m
Waga brutto: 6000 kg
Max rozmiar przetwarzania: 2000*3000*1500 mm
Słowa kluczowe: Kamienna maszyna
Szybkość łącza: 0-40 m/s
Nr modelu: Odkrycie 4-2000/2500/3000
Zużycie wody: 6m3/H
Kontrola: CNC
Max rozmiar przetwarzania: 3000*2500*1500 mm
Średnica drutu: 0,6-1,8 mm
Automatyzacja: Automatyczny
Typ kontroli: CNC
Długość cięcia: 20-60 m
Średnica: 8,5 mm do 11,5 mm
Precyzja cięcia: Wysoki
Wrzeciono: 15 kW
Rozmiar wózka: 1400*2500mm
Odległość regulacji: 450 mm
Silnik brutto: 11kw
System sterowania: System PLC
Moc znamionowa: 2,2 kW
Podstawowe informacje
Miejsce pochodzenia: Jinjiang, Fujian, Chiny
Nazwa handlowa: Xianda Machinery
Orzecznictwo: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Numer modelu: Odkrycie 4-2000/2500/3000
Zapłata
Szczegóły pakowania: Opakowanie plastikowe, odpowiednie do transportu morskiego
Czas dostawy: 1 miesiąc
Zasady płatności: L/c, t/t, d/p, zachodni związek, paypal, pieniądze gram, inne
Możliwość Supply: 1000 zestawów/rok
opis produktu
CNC Diamond Wire Saw Discovery 4-2500 Ultimate Stone Cutting Machine
Key Specifications
Attribute Value
Wire Length 16.7m
Gross weight 6000kg
Max processing size 2000*3000*1500mm
Wire Speed 0-40m/s
Model NO. Discovery 4-2000/2500/3000
Water Consumption 4m3/H
Control CNC
Wire Diameter 0.6-1.8mm
Automation Automatic
Cutting Precision High
Spindle 15KW
Control System PLC SYSTEM
Technical Specifications
Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed Main motor Outline dimension Gross weight Water consumption
Discovery4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Gallery
Product Description

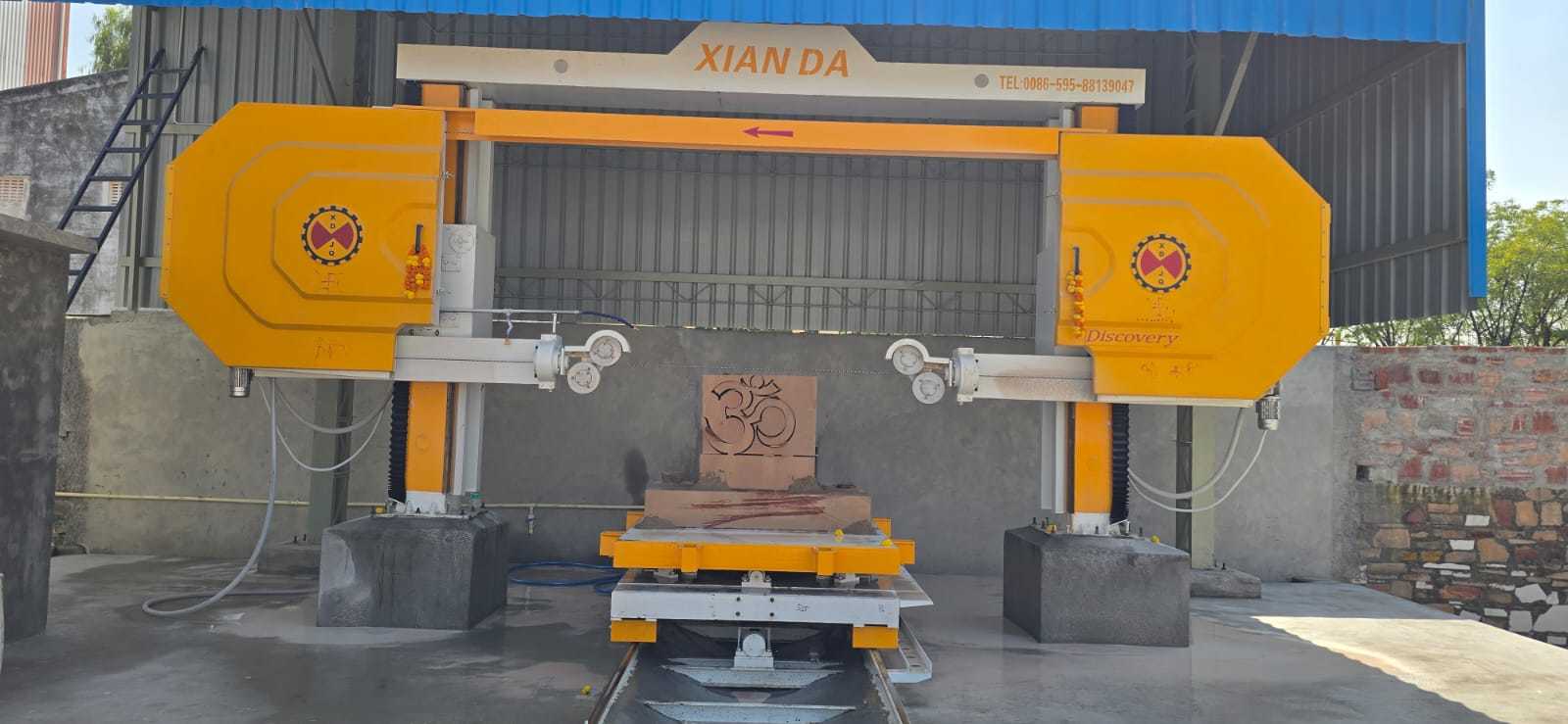

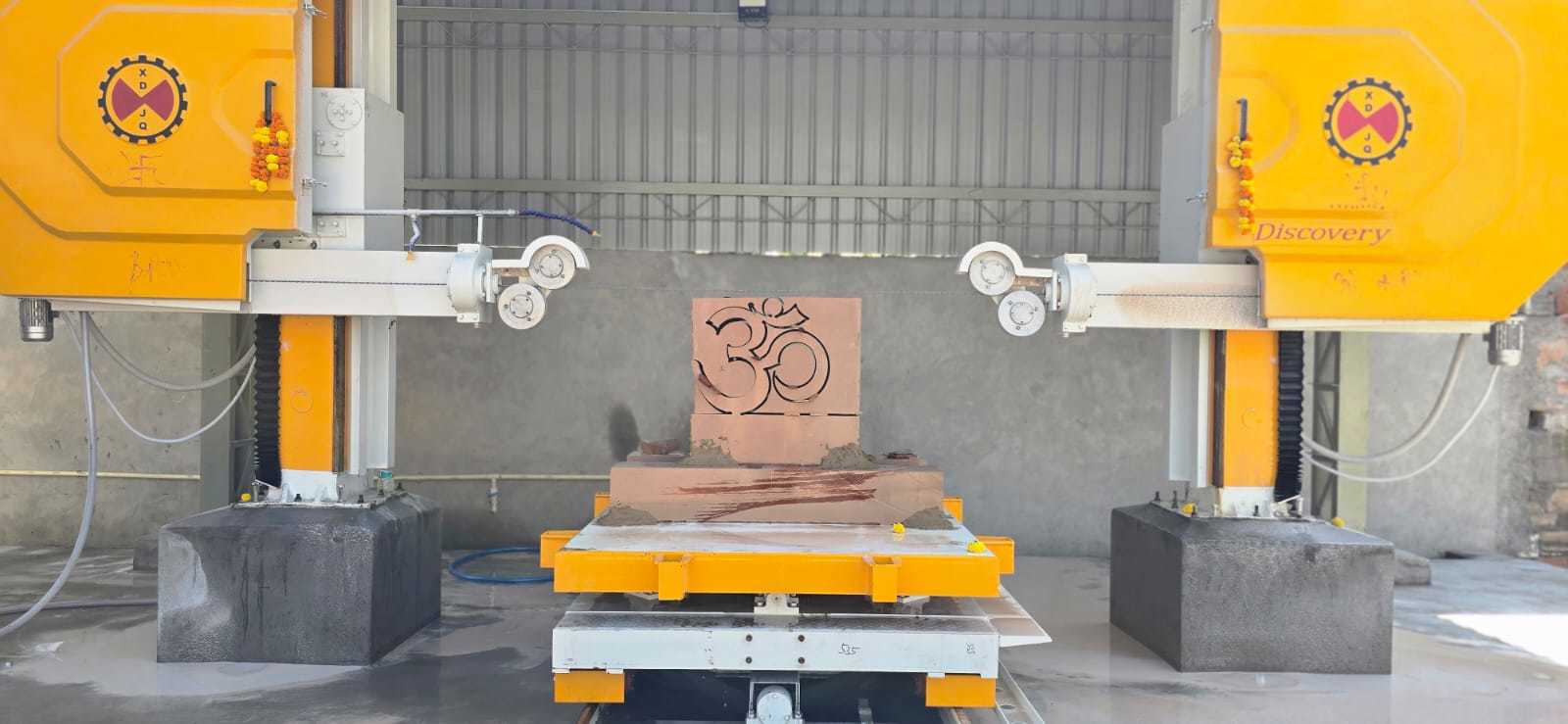

The Diamond Wire Saw Machine is a cutting machine specially designed for cutting granite, marble, and sandstone. It is equipped with a 16.7-meter wire, which is capable of cutting materials up to 2000*3000*1500mm in size. The machine is equipped with a four-spindle linkage to ensure an accurate cutting process. It is powered by a motor that offers a wire speed of 0-40m/s, and consumes 4m3/H of water. The Diamond Wire Saw Machine is reliable and has a one-year warranty.

Applications

XIANDA MACHINERY's diamond wire saw machine is a reliable, durable and cost-saving tool used for cutting and processing various stones such as marble, granite, quartz, sandstone, limestone and more.

Certified by API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, the diamond wire saw machine can be purchased with a minimum order quantity of 1 SET and is available for both sea and land transportation with suitable plastic package.

Customization Options
  • Brand Name: XIANDA MACHINERY
  • Model Number: Discovery 4-2000/2500/3000
  • Place of Origin: Jinjiang, Fujian, China
  • Minimum Order Quantity: 1 SET
  • Packaging: Plastic Package, Suitable for Sea Transportation
  • Delivery Time: 1 month
Support and Services

We offer comprehensive technical support and service for Diamond Wire Saw Machine. Our technicians are available to provide support and maintenance for your machine.

Our technical support services include:

  • Troubleshooting and technical support
  • Preventive maintenance and repair services
  • On-site support and advice
  • Software updates and upgrades
  • Replacement parts for Diamond Wire Saw Machine
Frequently Asked Questions
Q: What is the Brand Name of the Diamond Wire Saw Machine?

A: The Brand Name is XIANDA MACHINERY

Q: What is the Model Number of the Diamond Wire Saw Machine?

A: The Model Number is Discovery 4-2000/2500/3000

Q: Where is the place of origin for the Diamond Wire Saw Machine?

A: The place of origin is Jinjiang, Fujian, China
