High-Performance Bridge Type Automatic Grinding Machine for Stone Processing

1 zestaw
MOQ
To Be Negotiable
Cena £
High-Performance Bridge Type Automatic Grinding Machine for Stone Processing
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Structure: Bridge-Structure
Control: CNC
Material: marble, granite, and natural stone surfaces
Main Motor: 15kw
Total Power: 19kw
Outline dimension: 6000*4250*1550mm
Lifting Stroke: 250mm

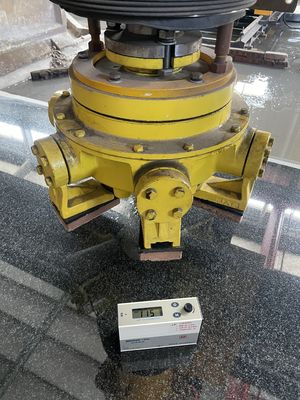

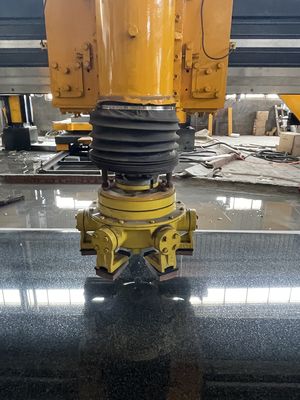

Grinding Head Type: Six-claw grinding head
Air Compressor Support: 3 kw
Extended Travel Range: 2200/4500mm
Water consumption: 3m³/h
Number of grinding head: 1 pcs
Podstawowe informacje
Miejsce pochodzenia: Jinjiang, Fujian, Chiny
Nazwa handlowa: Xianda Machinery
Orzecznictwo: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Numer modelu: ZDPM-3522/3545
Zapłata
Szczegóły pakowania: Opakowanie z tworzywa sztucznego, odpowiednie do transportu morskiego
Czas dostawy: 1 miesiąc
Zasady płatności: L/C, T/T, D/P, Western Union, Paypal, Money Gram, inni
Możliwość Supply: 1000 zestawów/rok
opis produktu

High-Performance Bridge Type Automatic Grinding Machine for Stone Processing: Precision and Efficiency Redefined



Unveiling the Models: ZDPM - 3522 and ZDPM - 3545

We offer two powerful models, ZDPM - 3522 and ZDPM - 3545, each engineered to deliver top - notch performance.

Technical Parameter
Parameter Unit ZDPM-3522 ZDPM-3545
Front and back travel mm 2200 4500
Left and right travel mm 3500 3500
Lifting stroke mm 250 250
Main motor power kw 15 15
Total Power kw 19 19
Outline dimension mm 6000x4250x1550 6000x6450x1550
Water consumption m³/h 3 3
Grinding head type / Six-claw grinding head Six-claw grinding head
Number of grinding heads pcs 1 1
Air compressor power kw 3(Optional ) 3(Optional )



High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 0High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 1High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 2High-Performance Bridge Type Automatic Grinding Machine for Stone Processing 3



  1. Bridge-Type Architecture = Micron-Level Accuracy
    Unlike gantry designs, the one-piece Meehanite® cast-iron bridge damps vibration and guarantees ±0.05 mm planarity across the entire table. The result: consistent scratch depth and perfect flatness on granite, marble, quartzite, or porcelain slabs up to 1 200 × 3 500 mm (ZDPM-3522) or 1 200 × 4 500 mm (ZDPM-3545).
  2. 15 kW of Servo-Controlled Muscle
    The vector-controlled 15 kW main spindle delivers 300–3 000 rpm and real-time torque adjustment. Paired with the 6-claw planetary grinding head, it removes stock 30 % faster while using 20 % fewer abrasives compared to traditional three-claw heads.
  3. Plug-and-Produce Automation
  • 15-inch HMI with recipe library—scan a barcode and start the cycle.
  • Automatic thickness probing compensates for slab warpage on-the-fly.
  • OPC-UA & Modbus TCP built-in—ready for smart-factory dashboards.
  1. Built for 24/7, Backed for 10 Years
  • Linear roller guides rated for 50 000 km of maintenance-free travel.
  • Auto-lubrication every 8 hours; centralized rinse station keeps downtime <5 min per shift.
  • 10-year warranty on frame and bridge; global network of certified engineers for same-day remote diagnostics.
  1. ROI You Can Measure
    Installations in Brazil, India, and the UAE report:
  • 25 % lower labor cost per m²
  • 30 % reduction in abrasive spend
  • 20 % increase in daily throughput
  1. Optional Upgrades (Field-Retrofittable)
  • 5-axis profiling head for ogee & bullnose edges
  • Laser slab mapper for automatic warp compensation
  • Closed-loop water recycling—<50 L fresh water per shift
  • Remote production app—monitor OEE from any smartphone
Ready to Ship
ZDPM-3522 and ZDPM-3545 are in stock for immediate dispatch. Contact our application engineers for a live Zoom demo or request a virtual Factory Acceptance Test today.
Call / WhatsApp: +86-13055673306
Email: grop@chinaxianda.com
